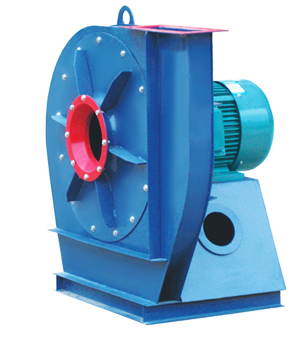

| 8-09 and 9-12 centrifugal fans |
|
|
| |
| They are high pressure centrifugal fans used specially for melting furnaces. They meet the requirements for the air blowing performance of 1-7L/h melting furnace. The fans can be used for blowing of various furnaces and forges, and deliver the air and gas that are noncorrosive, incapable of spontaneous combustion, and do not contain stickums. The temperature of media to be delivered shall not exceed 80℃. The content of dust and hard particles in the media shall not be more than 150mg/m3. |
| |
| 8-09 centrifugal fans |
| |
|
No.
|
Rotation Speed (r/min)
|
Power (Kw)
|
Volume Flow (m3/h)
|
Total Pressure (Pa)
|
|
6.8A
|
2900
|
7.5
|
675-1215
|
10523-11347
|
|
11
|
1485-1754
|
11439-11341
|
|
15
|
2024-2295
|
11063-10634
|
|
7.1D
|
2900
|
5.5
|
768
|
11472
|
|
11
|
1383-1690
|
12371-12471
|
|
15
|
2304
|
12364-12061
|
|
18.5
|
2612-2919
|
11594-11016
|
|
8D
|
2930
|
11.0
|
1110
|
14867
|
|
22.0
|
2442
|
16163
|
|
30
|
2887-3331
|
16023-15632
|
|
37
|
3775-4219
|
15026-14277
|
|
8.5D
|
2950
|
15
|
1341
|
17013
|
|
18.5
|
1877
|
17828
|
|
30
|
2414-2950
|
18347-18496
|
|
37
|
3487
|
18338
|
|
45
|
4023-4560
|
17888-17196
|
|
9D
|
2950
|
22
|
1591
|
19073
|
|
30
|
2228-2865
|
19988-20569
|
|
37
|
3502
|
20736
|
|
45
|
4138
|
20558
|
|
55
|
4775
|
20054
|
|
75
|
5412-6049
|
19278-18318
|
|
| |
| 9-12 centrifugal fans |
| |
|
No.
|
Rotation Speed (r/min)
|
Power (Kw)
|
Volume Flow (m3/h)
|
Total Pressure (Pa)
|
|
6.8A
|
2930
|
15
|
1700-2620
|
11590-12000
|
|
18.5
|
3080-3540
|
12140-12120
|
|
22
|
4000-4460
|
11980-11740
|
|
7.1A
|
2900
|
15
|
2074-2658
|
12347-12661
|
|
18.5
|
3000-3242
|
12807-12896
|
|
22
|
3826
|
13024
|
|
30
|
4410-4990
|
12935-12739
|
|
7.7A
|
2900
|
22
|
2349-3010
|
14543-14887
|
|
30
|
3671-4332
|
15171-15319
|
|
37
|
4993-5654
|
15220-14985
|
|
45
|
6315
|
14583
|
|
8D
|
2950
|
30
|
2996-3824
|
16216-16528
|
|
37
|
4651
|
16931
|
|
45
|
5478-6306
|
17096-16931
|
|
55
|
7133
|
16729
|
|
9D
|
2970
|
45
|
4295
|
20803
|
|
55
|
5481
|
21202
|
|
75
|
6667-7853
|
21719-21931
|
|
90
|
9039
|
21719
|
|
