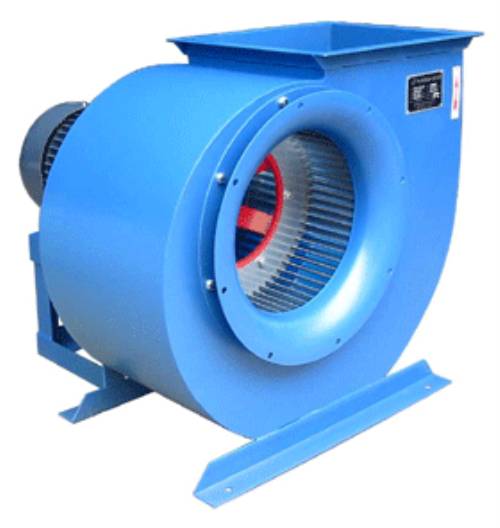

| 11-62 (A type) multi-airfoil centrifugal fan |
11-62-A centrifugal fan is a high efficiency, low speed, low noise centrifugal fan, he was advanced aerodynamic structure of the impeller, the logarithmic spiral casing, and has a novel and compact structure, small vibration, the use ofwhen to adjust and convenient. For air conditioning units, the size of hotel, restaurant ventilation or fume extraction; also can be used as a general interior and exterior of the building ventilation. The transmission medium is air or other natural gas temperature ≤ 80 ° C, the viscous material does not contain harmful gases, media, dust and solid debris ≤ 150 mg / m3.
Model
No |
Power
Kw |
Voltage
V |
Rotation
r/min |
Volume
m3/h |
Pressure
Pa |
Noise
A |
| 2.8A |
0.75 |
220/380 |
1400 |
1200~2500 |
480~362 |
≤67 |
|
3A
|
0.75 |
380 |
910 |
1325~2850 |
300~268 |
≤63 |
| 1.5 |
220/380 |
1400 |
2000~4250 |
650~600 |
≤73 |
| 2.2 |
220 |
1420 |
2150~4400 |
620~650 |
≤74 |
|
3.5A
|
1.1 |
380 |
910 |
3200~5000 |
420~365 |
≤69 |
| 3 |
380 |
1420 |
4000~6500 |
1000~920 |
≤78 |
|
4A
|
2.2 |
380 |
960 |
4400~7500 |
660~550 |
≤70 |
| 3 |
380 |
960 |
4500~8700 |
660~500 |
≤73 |
|
5A
|
4 |
380 |
910 |
7500~10000 |
800~650 |
≤76 |
| 5.5 |
380 |
960 |
8000~11500 |
1050~960 |
≤78 |
| 6A |
7.5 |
380 |
960 |
8000~14000 |
1200~1000 |
≤83 |
| 6.5A |
11 |
380 |
970 |
10800~21000 |
1270~1100 |
≤85 |
| 7A |
11 |
380 |
730 |
12053~21330 |
1080~950 |
≤82 |
