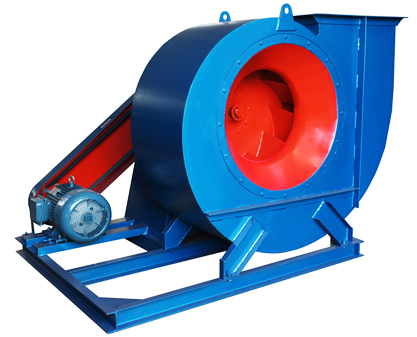

| 4-72 and F4-72 centrifugal fans |
|
|
| |
They can be used for indoor ventilation in common factories and large buildings, delivering air and other gas that are incapable of spontaneous combustion and noncorrosive to steel and iron materials, and will do no harm to human body. B4-72 fan may be used for ventilation of inflammable and volatile gas. There shall not be stickums in the gas. The content of gas and hard particles shall not be more than 150mg/m3. The temperature of gas shall not exceed 80 ℃.
F4-72 series are anticorrosive centrifugal fans that are comprised of stainless steel (or glass reinforced plastics) impeller, shell, air intake and motor. They can be used to deliver corrosive gas. The performance and installation dimension of them are same with 4-72. |
| |
|
No.
|
Power (Kw)
|
Rotation Speed (r/min)
|
Volume Flow(m3/h)
|
Total Pressure (Pa)
|
|
2.8A
|
1.5
|
2900
|
1131-2356
|
994-606
|
|
3.2A
|
2.2
|
2900
|
1688-3517
|
1300-792
|
|
1.1
|
1450
|
844-1758
|
324-198
|
|
3.6A
|
3
|
2900
|
2664-5268
|
1578-989
|
|
1.1
|
1450
|
1332-2634
|
393-247
|
|
4A
|
5.5
|
2900
|
4012-7419
|
2014-1320
|
|
1.1
|
1450
|
2006-3700
|
501-329
|
|
4.5A
|
7.5
|
2900
|
5712-10562
|
2554-1673
|
|
1.1
|
1450
|
2856-5281
|
634-416
|
|
5A
|
15
|
2900
|
7728-15455
|
3187-2019
|
|
2.2
|
1450
|
3864-7728
|
790-502
|
|
6A
|
4
|
1450
|
6677-13353
|
1139-724
|
|
1.5
|
960
|
4420-8841
|
498-317
|
|
6C
|
15
|
2240
|
10314-20628
|
2734-1733
|
|
11
|
2000
|
9209-18418
|
2176-1380
|
|
7.5
|
1800
|
8288-16576
|
1760-1116
|
|
5.5
|
1600
|
7367-14734
|
1389-881
|
|
3
|
1250
|
5756-11511
|
846-537
|
|
2.2
|
1000
|
4605-9209
|
541-344
|
|
1.1
|
800
|
3684-7367
|
346-220
|
|
7C
|
18.5
|
1800
|
13161-26322
|
2395-1519
|
|
15
|
1600
|
11698-23397
|
1890-1199
|
|
11
|
1450
|
10602-21204
|
1553-984
|
|
7.5
|
1250
|
9140-18279
|
1151-731
|
|
5.5
|
1120
|
8189-16378
|
924-586
|
|
4
|
1000
|
7312-14623
|
736-468
|
|
8C
|
37
|
1800
|
28105-36427
|
2920-2302
|
|
30
|
1800
|
19646-25240
|
3143-3032
|
|
22
|
1600
|
17463-22435
|
2478-2390
|
|
11
|
1250
|
13643-25297
|
1507-1106
|
|
7.5
|
1120
|
12224-15705
|
1209-1166
|
|
5.5
|
1000
|
10914-14022
|
963-929
|
|
5.5
|
900
|
14052-18213
|
725-572
|
|
3
|
800
|
8732-16190
|
615-452
|
|
2.2
|
710
|
7749-11085
|
485-450
|
|
10C
|
37
|
1250
|
34863-48797
|
2373-1877
|
|
30
|
1120
|
31237-43722
|
1902-1505
|
|
18.5
|
1000
|
27890-39038
|
1514-1199
|
|
15
|
900
|
25101-35134
|
1225-970
|
|
11
|
800
|
22312-31230
|
967-766
|
|
7.5
|
710
|
19802-27717
|
761-603
|
|
5.5
|
630
|
17571-24594
|
599-475
|
|
12C
|
75
|
1120
|
53978-75552
|
2746-2172
|
|
55
|
1000
|
63953-67457
|
1859-1729
|
|
37
|
900
|
43375-60712
|
1767-1399
|
|
30
|
800
|
38556-53966
|
1395-1104
|
|
18.5
|
710
|
34218-47895
|
1097-869
|
|
15
|
630
|
30362-42498
|
863-684
|
|
11
|
560
|
31774-37776
|
646-540
|
|
7.5
|
500
|
24097-33728
|
543-430
|
|
12C
|
110
|
1000
|
76535-107124
|
2985-2361
|
|
75
|
900
|
68881-96412
|
2412-1908
|
|
55
|
800
|
61228-85699
|
1903-1506
|
|
37
|
710
|
54340-76058
|
1497-1185
|
|
30
|
630
|
48217-67488
|
1177-932
|
|
18.5
|
560
|
42859-59990
|
929-736
|
|
15
|
500
|
38267-53562
|
741-587
|
|
11
|
450
|
34441-48206
|
599-474
|
|
7.5
|
400
|
30614-42850
|
474-375
|
|
5.5
|
355
|
27170-38029
|
372-295
|
|
