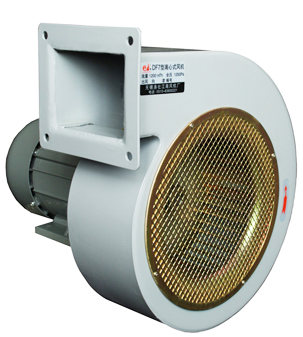

| DF series low noise centrifugal fan |
 |
|
| |
| They have multi-blade forward and narrow-wheel impellers, and are characterized by excellent process design, firm material, reliable performance, low noise, high efficiency, long service life, small volume, high pressure and convenience in installation, etc. This series of fans are extensively applied to telecom, power, electronics, coal mine, steam ship and paper making industries, and especially applied to cooling, temperature control and ventilation of plastic machinery, printing machinery, cable machinery, blow molding machine, blueprint machine, drying machine, and underground facilities. |
| |
|
Machine No.
|
Motor Power Kw
|
Rotation Speed r/min
|
Volume Flow m3/h
|
Pressure Pa
|
Noise dB(A)
|
weight(kg)
|
|
3-phase
|
1-phase
|
|
DF-1
|
0.04
|
2800
|
160
|
250
|
<60
|
2.7
|
3.4
|
|
DF-2
|
0.25
|
2800
|
504
|
869
|
<74
|
6.8
|
8.5
|
|
DF-3
|
0.18
|
2800
|
405
|
458
|
<72
|
5.2
|
6.4
|
|
DF-3B
|
0.12
|
2800
|
340
|
340
|
<72
|
4.7
|
5.1
|
|
DF-4
|
0.06
|
2800
|
246
|
412
|
<74
|
3.5
|
3.6
|
|
DF-5
|
0.55
|
2800
|
850
|
1020
|
<76
|
10.6
|
11.8
|
|
DF-5A
|
0.55
|
2800
|
850
|
853
|
<76
|
10.2
|
11.8
|
|
DF-6
|
0.37
|
2800
|
660
|
853
|
<76
|
7.8
|
9.5
|
|
DF-7
|
0.75
|
2800
|
1200
|
1250
|
<80
|
12
|
13.2
|
|
DF-8
|
1.1
|
2840
|
1600
|
1300
|
<82
|
12.5
|
19
|
|
DF-8A
|
1.1
|
2800
|
1590
|
1400
|
<80
|
22.2
|
24
|
|
DF-8B
|
1.1
|
2800
|
1740
|
1861
|
<83
|
22.2
|
24
|
|
DF-9
|
1.5
|
2840
|
2000
|
1400
|
<85
|
30
|
32.2
|
|
DF-10
|
2.2
|
2840
|
2300
|
1450
|
<85
|
34.6
|
37.4
|
|
DF-11
|
3
|
2860
|
4120
|
1868
|
<87
|
48
|
／
|
|
DF-12
|
4
|
2880
|
5158
|
1883
|
<87
|
61
|
／
|
|
DF-13
|
5.5
|
2900
|
5847
|
2103
|
<87
|
79
|
／
|
|
DF-14
|
7.5
|
2900
|
5847
|
2105
|
<89
|
97
|
／
|
|
DF-15
|
11
|
2930
|
5847
|
3624
|
<89
|
137
|
／
|
|
DF-16
|
15
|
2930
|
5847
|
3420
|
<89
|
151
|
／
|
|
