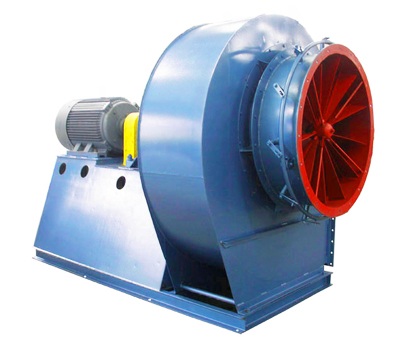

| G4-68 and Y4-68 centrifugal fans and draught fans |
|
|
| |
| The draught fans are applied to ventilation or induced draft of below 230t /h steam boilers in thermal power plants. Without other special requirements, G4-68 types may be used for mine ventilation and common ventilation. The medium of fans shall be air whose maximum temperature does not exceed 80℃, while the medium of draught fans shall be smoke, whose maximum temperature does not exceed 250℃. A dust collection device must be arranged in front of the draught fans in order to prolong service life of fan. |
| |
| G4-68 centrifugal fan performance tables |
|
Machine No.
|
Motor Power
Kw
|
Rotation Speed
r/min
|
Volume Flow
m3/h
|
Pressure
Pa
|
|
|
8D
|
18.5
|
1450
|
16985-30134
|
2177-1481
|
|
9D
|
30
|
1450
|
24183-42906
|
2756-1873
|
|
11
|
960
|
16011-28407
|
1206-824
|
|
10D
|
55
|
1450
|
33173-58856
|
3403-2315
|
|
15
|
960
|
21963-38966
|
1491-1010
|
|
7.5
|
730
|
16701-29631
|
863-588
|
|
11.2D
|
90
|
1450
|
46606-82688
|
4276-2903
|
|
30
|
960
|
30856-54745
|
1873-1275
|
|
11
|
730
|
23464-41629
|
1079-736
|
|
12.5D
|
160
|
1450
|
64791-114952
|
5325-3619
|
|
45
|
960
|
42896-76106
|
2334-1589
|
|
22
|
730
|
32619-57872
|
1353-912
|
|
14D
|
250
|
1450
|
91027-102772
|
6679-6541
|
|
315
|
1450
|
114518-161499
|
6326-4531
|
|
75
|
960
|
60266-75819
|
2923-2775
|
|
90
|
960
|
83595-106924
|
2638-1991
|
|
37
|
730
|
45827-81307
|
1697-1147
|
|
16D
|
160
|
960
|
89960-159606
|
3825-2599
|
|
75
|
730
|
68407-121367
|
2207-1501
|
|
45
|
580
|
54351-96429
|
1393-951
|
|
| Y4-68 centrifugal fan performance tables |
|
Machine No.
|
Motor Power
Kw
|
Rotation Speed
r/min
|
Volume Flow
m3/h
|
Pressure
Pa
|
|
|
8D
|
15
|
1450
|
15889-29038
|
1540-1059
|
|
9D
|
22
|
1450
|
22623-28864
|
1952-1844
|
|
30
|
1450
|
31984-41345
|
1756-1344
|
|
7.5
|
960
|
14978-27374
|
853-588
|
|
10D
|
45
|
1450
|
31033-56715
|
2413-1657
|
|
15
|
960
|
20546-37549
|
1059-726
|
|
5.5
|
730
|
15623-28553
|
608-422
|
|
11.2D
|
75
|
1450
|
43599-79681
|
3021-2079
|
|
22
|
960
|
28866-52754
|
1324-912
|
|
11
|
730
|
21950-40115
|
765-530
|
|
12.5D
|
110
|
1450
|
60611-68971
|
3766-3697
|
|
132
|
1450
|
77331-110772
|
3560-2589
|
|
37
|
960
|
40129-73339
|
1648-1138
|
|
18.5
|
730
|
30515-55768
|
951-657
|
|
14D
|
250
|
1450
|
85154-155627
|
4727-3246
|
|
75
|
960
|
56378-103036
|
2069-1422
|
|
30
|
730
|
42871-78350
|
1197-824
|
|
16D
|
110
|
960
|
84156-95764
|
2707-2658
|
|
132
|
960
|
107372-153808
|
2560-1854
|
|
55
|
730
|
63994-116954
|
1559-1079
|
|
45
|
580
|
50844-92922
|
991-677
|
|
| |
